ARCHITECTURAL DESIGN 08
2300M VERTICAL CITY
MODELED AT:
AUTOCAD 2019
REVIT 2019
RENDERED AT:
LUMION 8.5
PRESENTED MANUAL DRAWING
CONTRIBUTION INCLUDES; SITE DEVELOPMENT, PLANNING, MANUAL DRAFTING AND RENDERING
CHALLENGING ALL ENGINEERING FEATS PRESENTS, THIS 2300M HIGH BUILDING WHICH IS AS HIGH AS THE HIGHEST POINT IN THE PHILIPPINES, THESE THREE TOWERS, LUZON, VISAYAS, AND MINDANAO WILL BE SUPPORTED BY HIGH MILE BUTTRESSES PUNCTURED WITH FAN HARVESTING ENERGY THAT WILL BE SELF-SUFFICIENT AND OFFERS COMPLETE PLANNED DEVELOPMENT.
LOCATED ON AN ISLAND OF ITS OWN IN PORO ILOCOS NORTE, THIS SELF-SUFFICIENT CITY WILL ALSO OFFER ITS OWN DEFENSE SYSTEM AGAINST NATURAL AND MANMADE DISASTERS OR ATTACKS. IT USES ALL LOCAL NATURAL RESOURCES FOR SUSTAINABLE FOOD, ELECTRICITY, AND WATER MANAGEMENT. IT ALSO OFFERS TRANSPORTATION SYSTEMS AND TOURISM DEVELOPMENT FACILITIES.
03 / 25 / 2019
ARCHITECTURAL DESIGN 08
URDANETA GENERAL rESILIENT
HOSPITAL
WITH CANCER INSTITUTE
CONSIST OF A DISASTER RESILIENT LEVEL 3 HOSPITAL WHICH IS PLANNED TO BE DEVELOPED BY PHASE, A CANCER INSTITUTION AND A SELF-SUSTAINING SITE THAT INCLUDES A MEDICAL SCHOOL, HOTEL, AND MEDICAL TOURISM BUILDING, UTILITY BUILDINGS, VERTICAL FARMING GARDEN, COMMUNITY CENTER, AND PUBLIC TRANSPORT STOPS
.
MODELED AND RENDERED AT: REVIT 2019
BUSINESS PLAN AND STRATEGY DEVELOPED ON: OFFICE WORD AND POWERPOINT 2019
CONTRIBUTION INCLUDES; SITE DEVELOPMENT MAIN HOSPITAL, PLANNIN, EXTERIOR RENDERING.
02 / 25 / 2019
know more?
01 / 25 / 2019
ARCHITECTURAL DESIGN 08

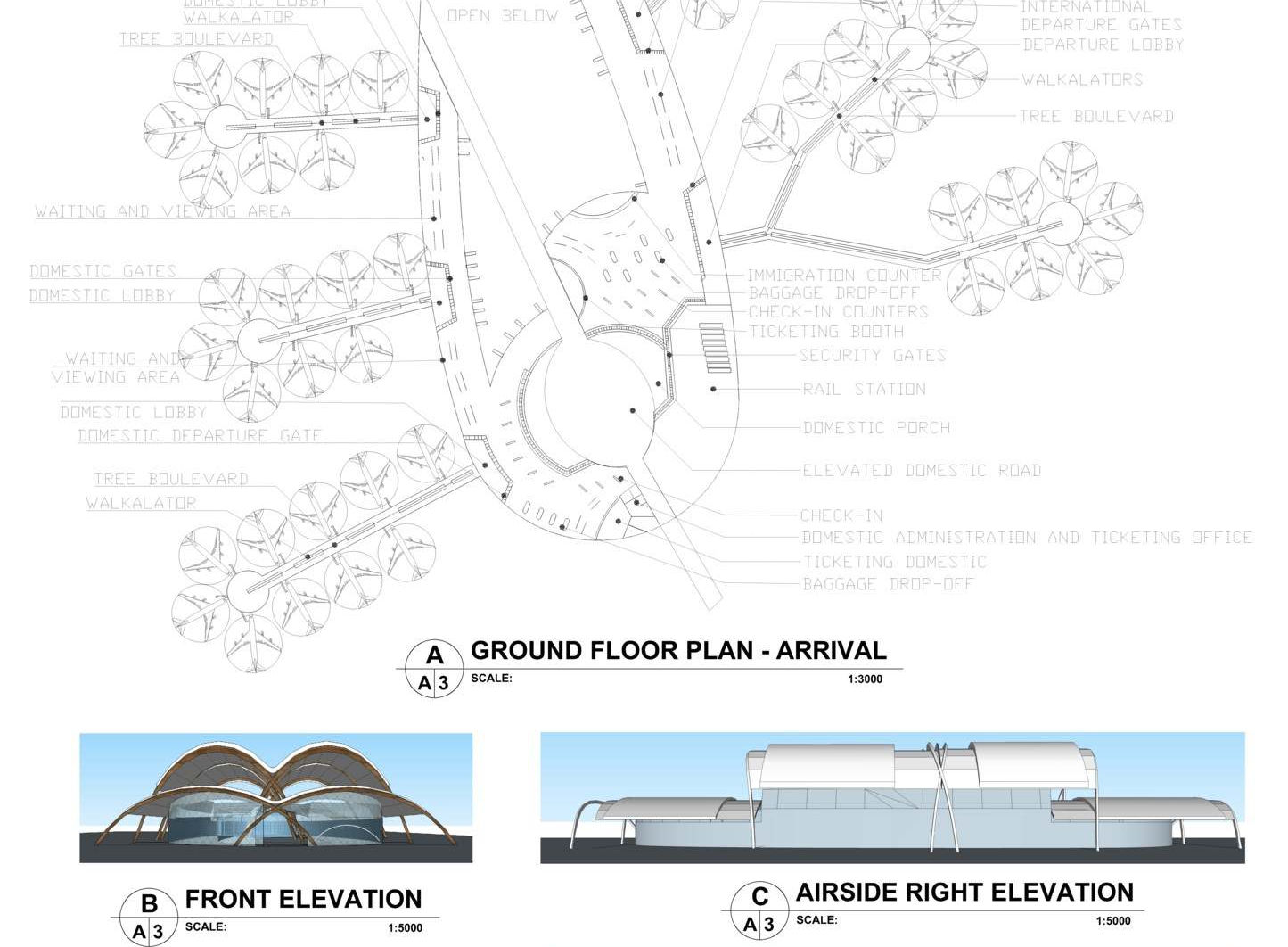

AIRPORT DESIGN
DEVELOPED AT: AUTOCADD 2019
MODELED AT SKETCH-UP 2017
RENDERED AT; VRAY
CONTRIBUTION INCLUDES; AIRPORT DESIGN PLANNING AND SITE DEVELOPMENT
LOCATED AT GAPAN, NUEVA ECIJA THIS PROPOSED INTERNATIONAL AIRPORT CAN SUPPORT A MASSIVE AMOUNT OF TRAFFIC. IT FEATURES A DIFFERENT APPROACH TO AIRPORT DESIGN WHERE IT FOCUSES ON TOURISM. IT INCLUDES MUSEUMS, HOTELS, AND EVEN AMUSEMENT PARKS OPEN TO ALL PASSENGERS AND NON-PASSENGERS, TRULY A DIFFERENT FEAT ON AIRPORT DESIGN.
INSPIRED BY NEVA ICIJA'S WELL KNOW RICE GRAIN AND THE THREE MAIN ISLANDS OF THE PHILIPPINES, LUZON, VISAYAS, AND MINDANAO WILL FEATURE INTERNATIONAL AND LOCAL FLIGHTS WITH ONE CENTRAL FEATURE WHERE EVERYONE CAN JUST MEET, HAVE FUN, AND BE HAPPY. WHETHER YOU'RE A LOCAL, A FOREIGN, JUST A VISITOR, FOR DEPARTURE OR ARRIVAL WE ARE ALL FREE TO MEET, SOCIALIZE, AND JUST HAVE FUN LIKE YOU NEVER HAVE AT AN AIRPORT BEFORE.
ARCHITECTURAL DESIGN 07

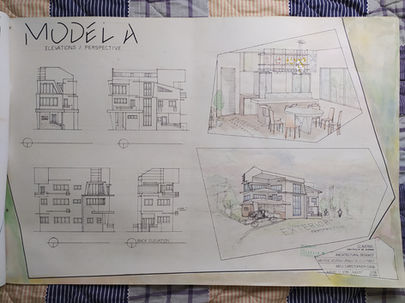

small residential subdivision
SMALL RESIDENTIAL SUBDIVISION WITH 2 MODEL PLANS. IT PROPOSES A GREEN WALKABLE SITE DEVELOPMENT SEPARATING PEDESTRIANS WITH VEHICULAR ACCESS, THROUGH A CENTRAL SHARED STRIP GARDEN AND POOL AREA, WHICH ALSO IMPROVES SOCIAL INTERACTION WITHIN THE NEIGHBORHOOD WHILE PROVING A SAFE PLACE FOR CHILDREN TO PLAY AND COMMUNICATE..
HANDDRAWN
09 / 11 / 2018
ARCHITECTURAL DESIGN 07
ANCESTRAL HOUSE RE-USE & PRESERVATION
HANDDRAWN
RE-USE AND PRESERVATION OF EXISTING ANCESTRAL HOUSE AT THE PROTECTED AND HISTORICAL LANDMARK IN PILA, A TOURIST DESTINATION WITH MOST PRESERVED BAHAY NA BATO ALL ALONG OR WITHIN A STREET. THE GROUND FLOOR IS PROPOSED TO HAVE CAFE-BAR SUPPORTING THE BED AND BREAKFAST INN ON THE SECOND FLOOR. PRESERVING ALL THE CHARACTER OF THE EXISTING ANCESTRAL HOUSE
08 / 16 / 2018
ARCHITECTURAL DESIGN 07
SCIENCE BUILDING FORM CONCEPT
A CONCEPT FORM FOR A SCIENCE BUILDING ESQUISSE, PRESENTING THE USE OF BRAIN AS THE FORM FOR THE BUILDING.
HANDDRAWN ESQUISSE
08 / 03 / 2018
ARCHITECTURAL DESIGN 06
BEACH FRONT RESORT AND GATE DESIGN
A BEACH FRONT RESORT DEVELOPMENT AT BATANGAS AND A RESIDENTIAL SUBDIVISION GATE FRONTAGE AND FENCE DESIGN FEATURING CLASSICAL STYLE AND MONUMENTAL CHARACTER.
HANDDRAWN
03 / 03 / 2018
ARCHITECTURAL DESIGN 05
ANTIPOLO GOVERNMENT CENTER
HANDDRAWN
12 / 00 / 2017
THE PROPOSED MASTER PLAN OF ANTIPOLO GOVERNMENT CENTER FEATURES THE GOVERNMENT BUILDINGS, OFFICES, AND SERVICES FROM THE PREVIOUS PROPOSED PLANS, THE SITE PLANNING FOLLOWS A CENTRAL MONUMENTAL AND STRUCTURAL LANDMARK DERIVED FROM THE FORM OF A TREE THAT GIVES A SENSE OF PLACE, IDENTITY, AND DIRECTION, IT ALSO FEATURES AS A VIEWING DECK TO APPRECIATE THE SCENIC HIGH VIEWS OF ANTIPOLO, RIZAL AND THE LOWER PARTS OF METRO MANILA. SEPARATION BETWEEN THE VEHICULAR AND PEDESTRIANS IS ALSO HIGHLY CONSIDERED GIVING A WALKABLE AND PEOPLE-FRIENDLY APPROACH TO SITE PLANNING.

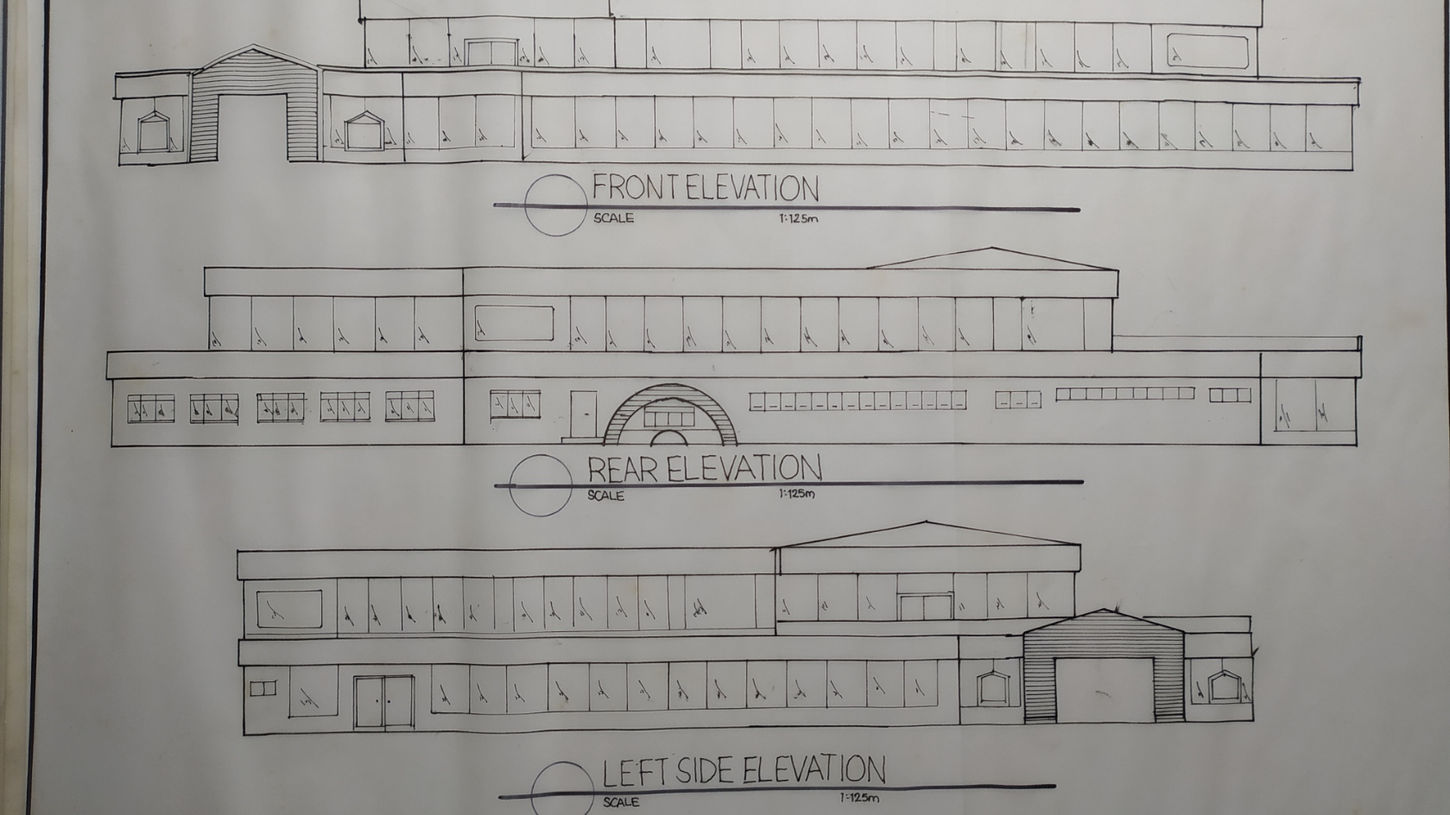

ARCHITECTURAL DESIGN 05
FIRE STATION AND PUBLIC MARKET
HANDDRAWN ESQUISSE
12 / 00 / 2017
AN QUICK ESQUISSE FOR FIRE STATION AND PUBLIC MARKET, COMPLETING THE GOVERNMENT CENTER PLAN. THE PUBLIC MARKET OFFERS NATURAL VENTILATION AND PROTECTION FROM RAIN AND SUN WHILE ALSO UTILIZING THE NATURAL LIGHTING FROM THE SUN, ITS CONCEPT IS DERIVED FROM BARCODES, WHICH USES VERTICAL SUN SHADING DEVICES SPECIALLY ORIENTED ON NORTH, WHILE AESTHETICALLY MODERN LOOKING.
THE FIRE STATION FOLLOW THE CONTRAST AND USUAL ELEMENTS THAT FIGHTS FIRE, IT FOLLOWS THE CHARACTERS AND FORMS OF EARTH AND WATER WHICH CREATES CONTRAST AND OPPOSE FIRE.
ARCHITECTURAL DESIGN 05
ANTIPOLO POLICE STATION
HANDDRAWN ESQUISSE
12 / 00 / 2017
THESE PROPOSED ANTIPOLO POLICE STATION DERIVED IT'S CONCEPT FROM THE NATURAL DEFENSE SYSTEMS OF NATURE AND ANIMALS, SUCH AS THE TURTLE SHELLS AND ARMADILLO SCALES, THE TURTLE SHELLS WERE APPLIED TO THE PUBLIC AREAS, USING GLASS AND STEEL FRAMES TO OPEN UP THE INTERIORS TO NATURAL LIGHTING, GIVING A MORE VIBRANT AND APPROACHABLE PUBLIC AREAS RELIEVING THE OLD SCARY CHARACTERISTICS OF POLICE STATIONS DESIGN, WHILE THE ARMADILLO SUN SHADES WERE USED ON PRIVATE AREAS REQUIRING PRIVACY AND SECURITY, FIRE EXITS ARE ALSO CAREFULLY PLANNED WITH CONSIDERATION TO THE TEMPORARY JAIL WITHOUT SACRIFICING SECURITY. THE ENTRANCE FOR PUBLIC, OFFICES, PRIVATE, AND JAIL AREAS ARE ALSO CAREFULLY PLANNED WITH CLEAR SEPARATION AND ACCESS.
ARCHITECTURAL DESIGN 05
ANTIPOLO CITYHALL
HANDDRAWN
12 / 00 / 2017
A PROPOSED ANTIPOLO CITYHALL FEATURING IT'S MOUNTAIN LIKE FORM, ANTIPOLO IS A MOUNTAINOUS AREA OF RIZAL WITH GOOD SCENIC VIEWS OF METRO MANILA, THE MOUNTAIN LIKE FORM ALLOWS THE STRUCTURAL ORGANIZATION OF THE GOVERNMENT AND THE IMPORTANCE OF OFFICES OR BRANCHES TO BE PORTRAYED ON PLANS AND ELEVATION, IT ALSO ALLOWS THE APPLICATION OF BALCONIES GIVING GREEN BREATHABLE SPACES ON EVERY FLOOR
ARCHITECTURAL DESIGN 04
BARANGAY HEALTH CENTER
A PROPOSED DESIGN FOR A BARANGAY OR SMALL UNIT HEALTH CENTER FOR THE COMMUNITY AND ESPECIALLY FOR CHILDREN, THE DESIGN PROPOSED A SIMPLE AND VERNACULAR TROPIC ADAPTED DESIGN WITH ADAPTATION OF COLORS, CHANGING THE IMPRESSION OF HEALTH CENTER TO BECOME LIGHTER AND APPROACHABLE SPECIALLY TO CHILDREN.
HANDDRAWN
02 / 00 / 2017
ARCHITECTURAL DESIGN 04
BRANCH BANK
HANDDRAWN
11 / 00 / 2016
A PROPOSED BRANCH BANK DESIGN THAT FEATURES A MORE OPEN APPROACH TO BANKING WITHOUT SACRIFICING SECURITY. THE CONCEPT DERIVES FROM A TORI GATE, A JAPANESE ENTRANCE GATEWAY TO A SACRED PLACE OR BUDDHIST TEMPLE. IT WAS USED TO PORTRAY A SENSE OF TRANSITION TO A PLACE WHILE STILL PORTRAYING AN OPEN AND APPROACHABLE BANK REMOVING THE TRADITIONAL MEDIEVAL SCARY AND OVERLY SECURED DESIGNS OF THE BANK WHILE ALSO IMPROVING THE SENSE OF SPACE AND ACTIVITY SURVEILLANCE..
ARCHITECTURAL DESIGN 04
BARANGAY HALL
A QUICK ESQUISSE DESIGN SKETCH PROPOSAL FOR A BARANGAY HALL FOR BASIC GOVERNMENT SERVICES, IT FEATURES A CLASSICAL FILIPINO-SPANISH VERNACULAR CHARACTER TO PORTRAY THE STRENGTH AND AUTHORITY, AND THE CULTURAL CHARACTERISTIC AND NEO-VERNACULAR NEEDS OF THE FILIPINO PEOPLE AND THE EXISTING ENVIRONMENT.
HANDDRAWN ESQUISSE
10 / 00 / 2016
ARCHITECTURAL DESIGN 03
RESTAURANT
A FAMILY RESTAURANT DESIGN PROPOSAL FEATURING THE FORM OF THE INFAMOUS FILIPINO JEEPNEY, PORTRAYS THE IMPORTANCE OF CLOSE FAMILY DINING AND THE FILIPINO CULTURAL DINING EXPERIENCE.
HANDDRAWN ESQUISSE
08 / 00 / 2015
ARCHITECTURAL DESIGN 03
LIBRARY DESIGN
HANDDRAWN ESQUISSE
10 / 00 / 2015
A LIBRARY DESIGN PROPOSAL IN THE EARLY YEARS OF ARCHITECTURE SCHOOL AND DESIGN, THIS LIBRARY FOLLOWED THE FORM OF AN OPEN BOOK, THE UPPER FLOOR CONSIST OF THE MAIN LIBRARY, THE FULL HEIGHT AND FULL GLASS WALLS AND ROOF IMPROVED CONNECTION WITH THE OUTSIDE ENVIRONMENT, WHO SAID LIBRARIES SHOULD FEEL CLOSE? THIS ALSO LESSENS THE NEED FOR ARTIFICIAL LIGHTING DURING THE DAY. THE LOWER FLOORS ON THE OTHERHAND FUNCTION AS BASIC OFFICE AND SUPPORT SERVICES.
PROFFESIONAL PRACTICE 03
aRCHITECTURAL FIRM
03 / 20 / 2019
MODELED AND RENDERED AT: REVIT 2019
BUSINESS PLAN AND STRATEGY DEVELOPED ON: OFFICE WORD AND POWERPOINT 2019
A COLLABORATIVE PROJECT OF CREATING AND MANAGING YOUR OWN ARCHITECTURAL FIRM, IT CONSIST OF ALL RELATIVE PLANNING, HUMAN RESOURCES, AND COST ESTIMATE OF BUILDING ANG MAINTAINING ONE. COMPUTATION OF SALARY WITH OTHER BENEFITS SUCH AS OVERTIMES, HOLIDAYS, CONTRIBUTION TO SSS, PHILHEALTH, PAG-IBIG, AND ALL OTHER RELATIVE DEVELOPMENT AND MARKETING STRATEGIES ALL ACCORDING TO LEGAL LAWS, RIGHTS, REGULATIONS
PLANNING 03
INTRAMUROS STREET FRONTAGE ACTIVENESS
DEVELOPED AT: OFFICE POWERPOINT 2019
CONTRIBUTION INCLUDES;SITE VISITS, ANALYSIS, PLOTTING AND DEVELOPMENT
AN EVALUATION OF STREET FRONTAGE ACTIVENESS THAT INCLUDES; ASSESSMENTS, CLASSIFICATIONS AND, RECOMMENDATIONS TO IMPROVE AND INFLUENCE THE STREET ACTIVENESS WHILE CONSIDERING AND RESPECTING THE HISTORICAL CHARACTERISTIC AND VALUE OF INTRAMUROS AND THE STREET ITSELF.
02 / 20 / 2019
PLANNING 03
bautista street urban renewal and heritage conservation
DEVELOPED AT: OFFICE POWERPOINT 2019
CONTRIBUTION INCLUDES;SITE VISITS, ANALYSIS, PLOTTING AND DEVELOPMENT
A RECOMMENDATION AND DEVELOPMENT FOR THE RENEWAL OF BAUTISTA STREET IN QUIAPO MANILA WITH CONSIDERATION TO HERITAGE CONSERVATION, IT INCLUDES; ASSESSMENTS, OBSERVATIONS, EVALUATIONS, AND RECOMMENDATION ON THE DEVELOPMENT OF THE STREET TO BECOME A BETTER PLACE TO LIVE IN.
03 / 25 / 2019
HISTORY OF ARCHITECTURE 01/02

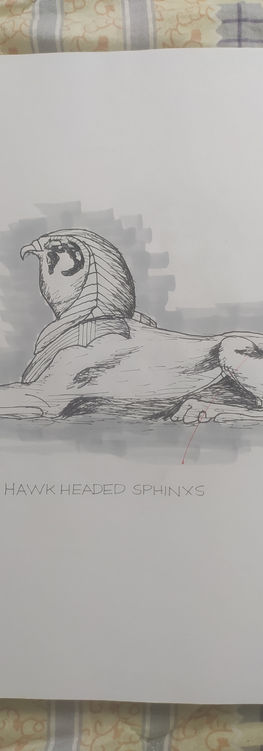

PREHISTORIC AND CLASSICAL ARCHITECTURE SKETCHES
A COMPILED SKETCHES OF PREHISTORIC AND CLASSICAL ARCHITECTURAL STRUCTURES, CHARACTERS AND FEATURES. IT INCLUDES, PREHISTORIC, BABYLONIAN/MIDDLE EAST, EGYPTIANS, GREEK, ROMANS, BYZANTINE, EARLY CHRISTIAN ARCHITECTURE, ROMANESQUE, GOTHIC, AND RENAISSANCE ARCHITECTURE.
MANUAL DRAFTING
08 / 25 / 2017
BUILDING TECHNOLOGY 04

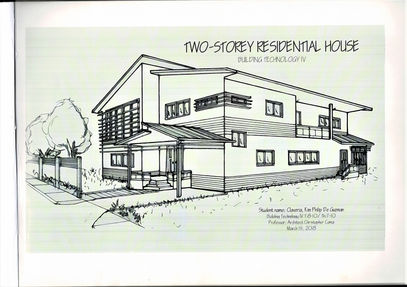

TWO STOREY RESIDENTIAL COMPLETE DRAWINGS
A COMPILED MANUALLY DRAWN COMPLETE WORKING DRAWINGS OF TWO STOREY RESIDENTIAL HOUSE THAT INCLUDES; ARCHITECTURAL, STRUCTURAL, ELECTRICAL AND PLUMBING WORKS INCLUDING IT DETAILS, SPECIFICATION, AND COST ESTIMATES.
MANUAL DRAFTING
03 / 02 / 2018
